Double-Bearing Pro Adjustable Ball Differential Kit

  • Sale
  • Regular price $49.99


This is the latest in differential technology for the 1/28 scale.

Unlike conventional adjustable ball bearing differentials, this differential utilizes

a thrust bearing to control axial loads. This makes the distribution of power to

each wheel more precise, providing a smoother throttle feel and a more

consistent driving experience.

Features:

- High Quality Thrust bearing made in Japan

- ABEC 5 radial bearings

- Silicon Nitride Ceramic Grade 5 balls

- no more e-clip required! this differential uses a special threaded nut. This allows you to keep the same settings you had before cleaning/taking apart the differential unlike traditional ball diffs which will require losing your setting. The special nut requires a rim with an inner diameter hole of at least 4.5mm with 5mm recommended. If you have rims that are smaller, just drill them out OR get our "Slim Version" special nut.

- Axle is 2mm wider per side than a regular ball diff making it the same length as a LM diff but fits into a regular motor mount. Lower offset wheels offer reduced flex and rim deflection giving you more consistent handling

- comes with a set of precision injected molded Delrin 64 pitch gears and pinions

    52, 53, 54 Tooth Spurs

    9, 10, 11, 12 Tooth Pinions

- titanium coated D-cut washers (compatible with PN Racing differentials)

- 304 stainless steel precision cut shaft

- T7075 anodized aluminum parts

For any wide width 2WD 1/28 chassis

Compatible with Kyosho MR-03, GL Racing GLR/GT, Atomic MRZ

Designed in Canada, Made in China

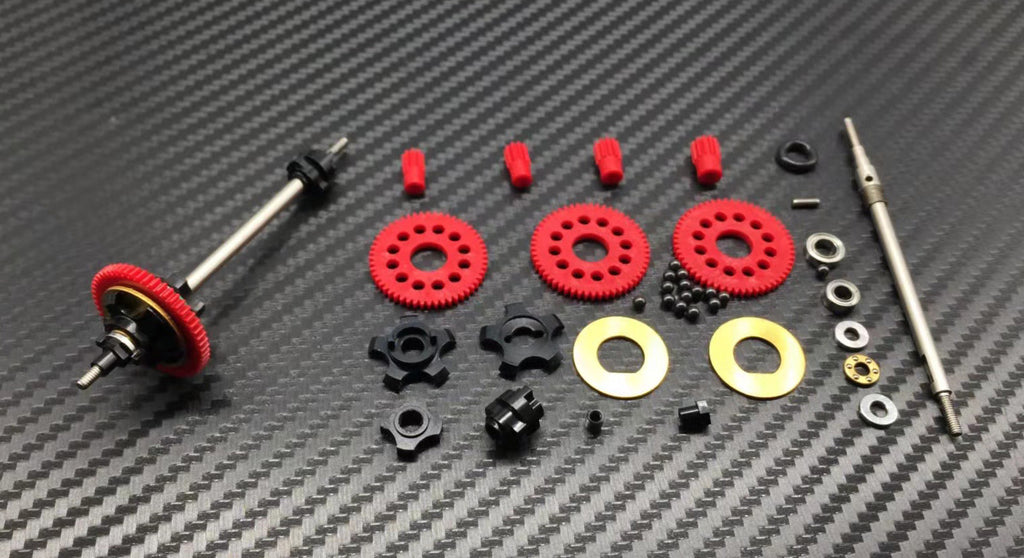

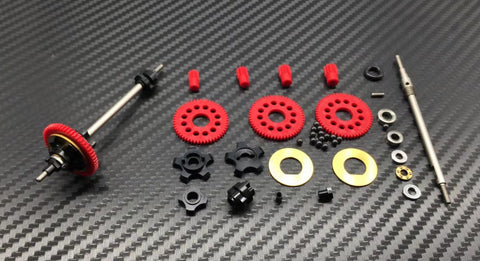

PRODUCT COMES UNASSEMBLED

Packaged kit weight: 20.68 grams

与传统的可调主场相比,这款差速器使用了:

一个推力轴承来控制轴向载荷,这种设计使得动力均匀分配到每个轮子更精准,提供了更顺滑的油门感觉以及更稳定的驾驶感觉

产品特点:

-日本产高质量推力轴承

ABEC 5 等级轴承

-氮化陶瓷球 G5等级

-无E型卡环设计!这款差速器使用了特别设计的拆卸螺母,这可以使得玩家在保养清理差速器的时候保持原有的设定,从而摆脱了之前差速器保养后需要重新调整设定的不便

-差速器带有一整套高精度赛钢 64 P齿轮组

    525354 三种大齿

    9101112 四种马达齿

-镀钛涂层的珠差盘(兼容PN珠差)

-不锈钢304

7075铝合金部件

这款差速器适合所有2WD后区宽体 1/28比例车架

兼容Kyosho MR03 GL Racing GLRGT Atomic MRZ

加拿大设计,中国制造

产品为KIT版本,未组装
